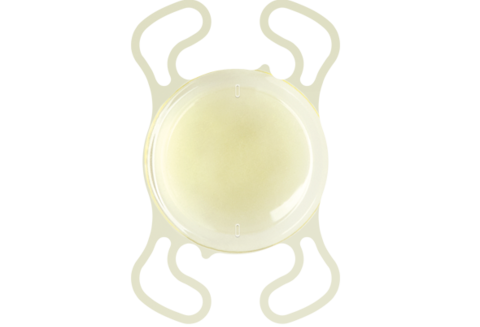

LuxSmart™ TORIC Preloaded Intraocular Lens

LuxSmart™ TORIC Preloaded Intraocular Lens

The Premium IOL for your daily range of vision

  • Fully Preloaded Acrylic Hydrophobic IOL
  • Asphericity modulation design with the combination of 4th and 6th orders of spherical aberration of opposite signs
  • 2.2mm incision (please refer to the loading guide)
  • Preloaded system - Single use injector

Indications & approvals may vary by country. Please contact your local representative for further information.

Product Information

MATERIAL

  • Material: Acrylic hydrophobic
  • Overall diameter: 11.00 mm
  • Optic diameter: 6.00 mm
  • Platform design: Single piece, 4 fixation points and 360°posterior square-edges
  • Optical design: Asphericity modulation design with the combination of 4th and 6th orders of spherical aberration of opposite signs
  • Haptics angulation:
  • Light Filter:

    • LuxSmart™: UV and violet filters

  • Diopter range:

Diopter range

Cylinder power – IOL Plane

+6.00 D

+0.75 D/+1.00 D/+1.50 D

+7.00 D

+0.75 D/+1.00 D/+1.50 D/+2.25 D/+3.00 D/+3.75 D/+4.50 D

From +8.00 D to +10.00 D (1.00 D steps)

+0.75 D/+1.00 D/+1.50 D/+2.25 D/+3.00 D/+3.75 D/+4.50 D/+5.25 D/+6.00 D

From +10.50 D to +30.00 D (0.50 D steps)

+0.75 D/+1.00 D/+1.50 D/+2.25 D/+3.00 D/+3.75 D/+4.50 D/+5.25 D/+6.00 D

From +31.00 D to +32.00 D (1.00 D steps)

+0.75 D/+1.00 D/+1.50 D/+2.25 D/+3.00 D/+3.75 D/+4.50 D/+5.25 D/+6.00 D

+33.00 D

+2.25 D/+3.00 D/+3.75 D/+4.50 D/+5.25 D/+6.00 D

+34.00 D

+4.50 D/+5.25 D/+6.00 D

  • Refractive index: 1.54 at 35°
  • Orientation features: Top right and bottom left

DELIVERY SYSTEM

  • Fully preloaded system with push injection: Accuject™ Pro
  • Recommended incision size: ≥ 2.2 mm (wound assisted technique)

CONSTANTS*
OPTICAL CONSTANT

  • SRK/T Constant A: 118.5
  • ACD: 5.23
  • Surgeon factor: 1.48
  • Haigis: a0: 1.045 / a1: 0.4 / a1: 0.1
  • EVO Constant A: 118.5
  • Barrett: Constant A: 118.4 / Lens Factor: 1.57
  • Hill-RBF 2.0 Constant A: 118.32

* Constants are estimates only. It is recommended that each surgeon develops their own values.
